Descriptions:

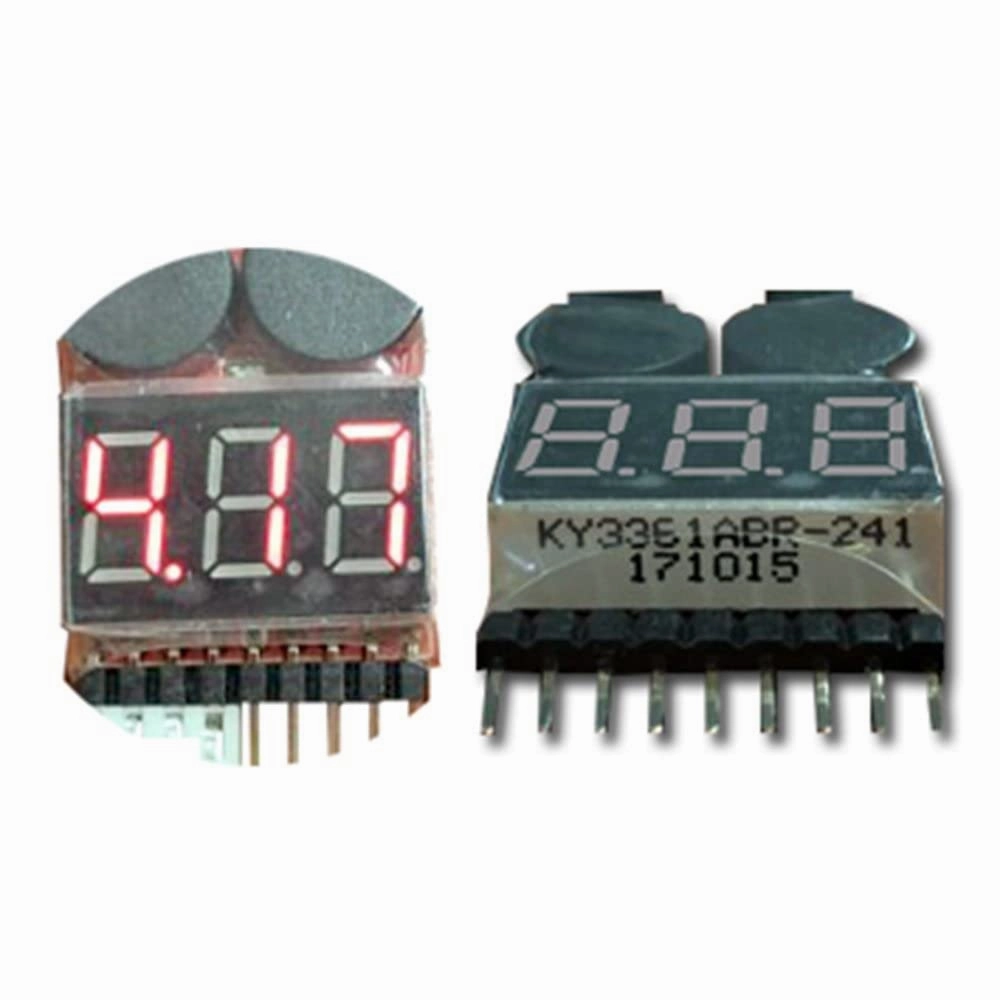

1-8S dual power display
BB ringing low voltage (adjustable) alarm / dual function
A product has two functions, electric power display and low voltage alarm (low voltage adjustable)
Product introduction:
The voltage display is used for the detection of lithium battery in 1S~8S, automatically detecting the voltage and total voltage of each core of the lithium battery. It supports the reverse connection protection.
It allows you to understand the working condition of your battery at any time and anywhere, so that your battery will not be hurt by overplay or overcharge.
When the voltage is lower than the set value, the buzzer will ring. The red LED will flash. The default setting value of the factory is 3.3V. Pressing the button can change the voltage setting value, and automatically save the user's current setting value.
Product parameters:
1. for the detection of 1S-8S lithium battery
2. voltage detection precision: 0.01V.
3. sets of voltage display range: 0.5V~4.5V
4. total voltage display range: 0.5V~36V
5.1S test mode voltage range: 3.7V~30V
6. low voltage buzzer alarm mode 2S - 8S
7. alarm voltage setting range: OFF~2.5~3.8V
8. size: 40 mm x 25 mm x 11 mm
9. weight: 8g

CFsunbird


Package Included:



10 X Buzzer Alarm

• Item Weight ‏ : ‎ 0.28 ounces
• Date First Available ‏ : ‎ December 23, 2021
• Manufacturer ‏ : ‎ Midzooparts
