- Master handset for single or double-door intercom system works with door intercoms and sub-master handsets (sold separately) to enable audio communication with visitors prior to authorizing access
- Handset accepts up to two sub-master handset connections to extend coverage to multiple rooms or over large areas
- Slim handset provides privacy when communicating with the door intercoms and with connected sub-master handsets
- Door release button controls an electric strike (sold separately) to remotely unlock the entrance for a visitor
- Two- or four-tone chime with adjustable volume and LED indicator alert the master intercom operator to a visitor call

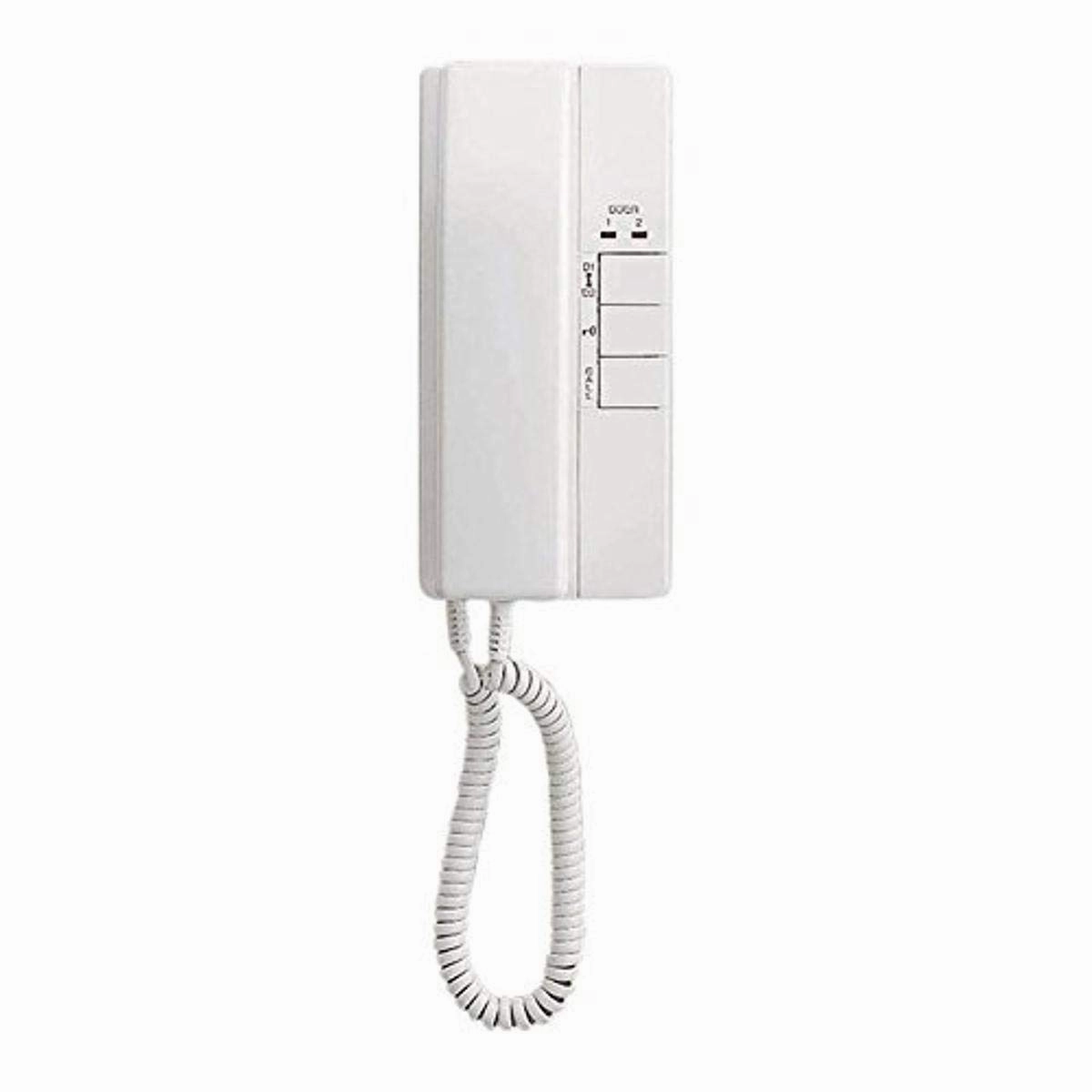

The Aiphone IE-2AD Chime Tone single- or double-door intercom system master handset works with door intercoms and sub-master handsets (sold separately) to enable semi-private communication with visitors prior to authorizing access to the building with the door release button. The handset connects to up to two door intercoms to monitor multiple entrances, and works with up to two sub-master handsets to extend coverage to multiple rooms or large areas. A call from the door intercom activates a volume-adjustable two- or four-tone chime and LED indicator on the master handset. The door-release button works with an electric strike (sold separately) to remotely unlock the entrance for the visitor. When sub-masters are connected, visitor calls ring all handsets and can be transferred between handsets. Master and sub-master handsets support internal calling.
SpecificationsDoor release contact rating24V at 500mAMaximum door distance from master500 ft. using a 22 AWG wire, 1,180 ft. using an 18 AWG wireMaximum distance from master to farthest sub250 ft. using a 22 AWG wire, 590 ft. using an 18 AWG wireCompatible wire (door to master)Aiphone 822202 (sold separately)Compatible wire (master to farthest sub)Aiphone 822206 (sold separately)Power requirements12 to 16VAC 180mA bell transformer to power both audio and electric strike, or 12 to 24VDC 160mA Aiphone PT-1210N AC transformer (sold separately) for audio only.Door intercom systems allow an occupant of a building to communicate remotely with a visitor through at least one door intercom and master intercom. Master intercoms with a door-access button remotely unlock the door for the visitor.
Aiphone manufactures intercom systems for residential, business, and healthcare structures. The company, founded in Japan in 1948, has its North American headquarters in Bellevue, WA. Aiphone meets International Organization for Standardization (ISO) standards 9001 and 14001.
What's in the Box?
- Aiphone IE-2AD master handset
- Mounting bracket
- Mounting hardware
- Product Dimensions : 10 x 4.4 x 3.2 inches; 1.55 Pounds
- Date First Available : December 24, 2013
- Manufacturer : AIPHONE COMMUNICATIONS
