- 1/2 in. OD SAE 45 flare connections do not require solder installation with copper tubing; provides easy removal for maintenance
- Standard Johnson Controls non-adjustable ring pack packing's provide proven reliability and long life
- Body rated 400 psig static pressure does not restrict building location
- Every valve tested for tight initial and long-term shutoff; ensures occupant comfort and energy conservation
- Factory-assembled valves available with pneumatic or electric actuators; install quickly and easily, minimizing job site time

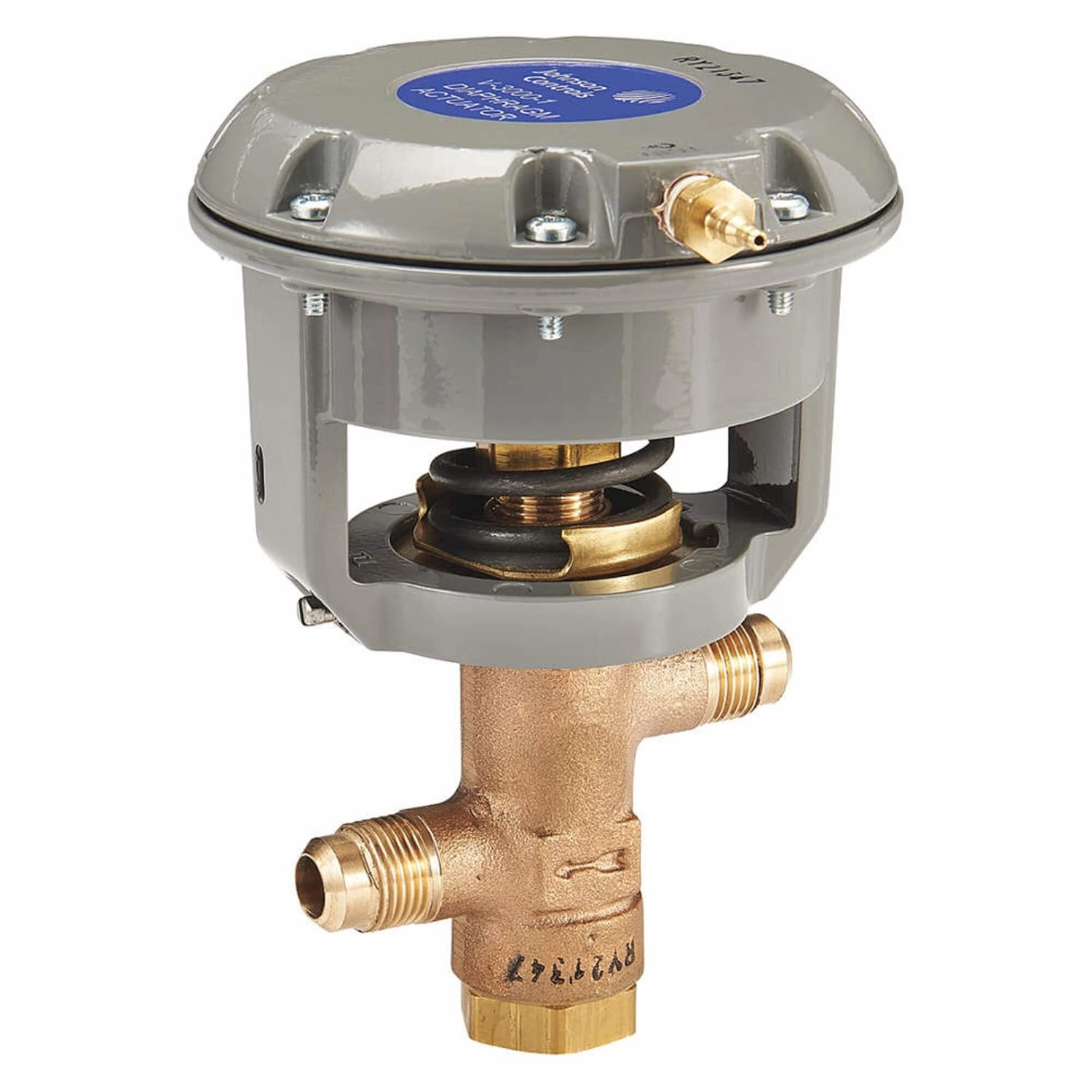

The 1/2 in. flared valve line accurately regulates the flow of hot or cold water in small HVAC terminal units. These 1/2 in. valves are available with a factory-installed V-3000-1 exposed type pneumatic actuator; enclosed actuators (V-3000-2) are also available (order separately). This valve style is available for field mounting the VA-805x Series electric actuators or with a factory-coupled VA-805x Series electric actuator.
- Product Dimensions : 4.7 x 4.8 x 7.2 inches; 3.09 Pounds
- Date First Available : July 5, 2012
- Manufacturer : Johnson Controls Inc
